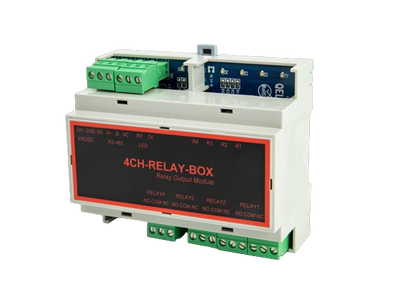

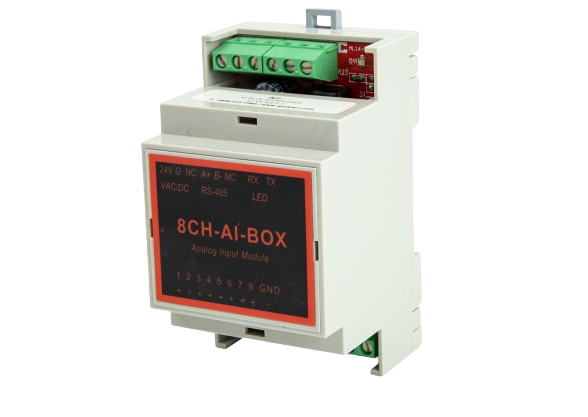

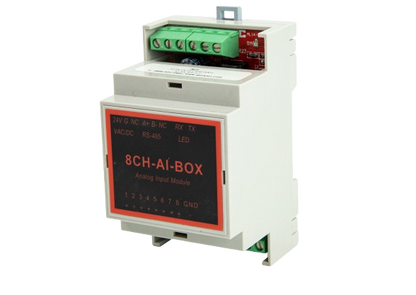

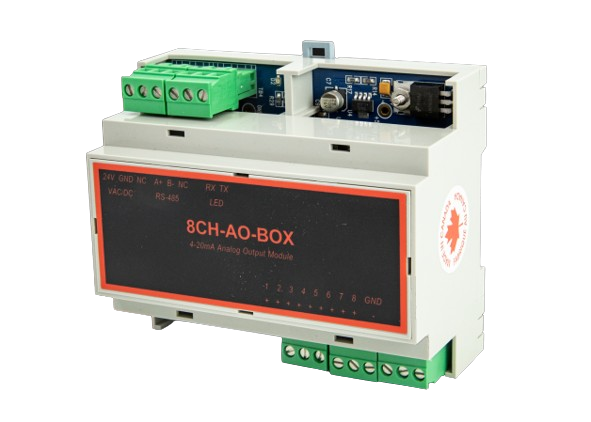

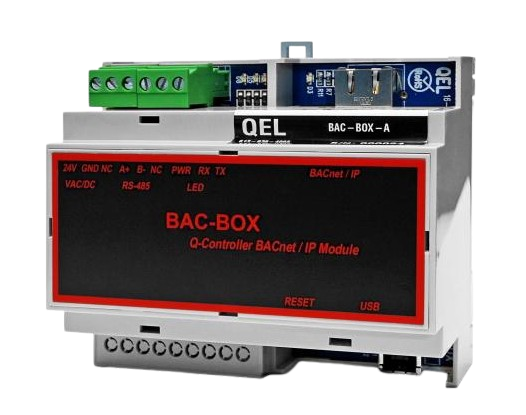

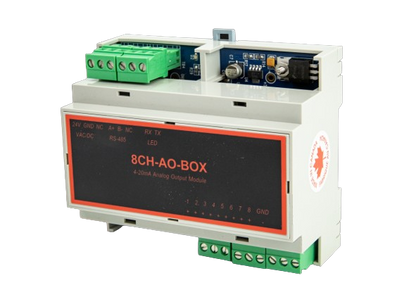

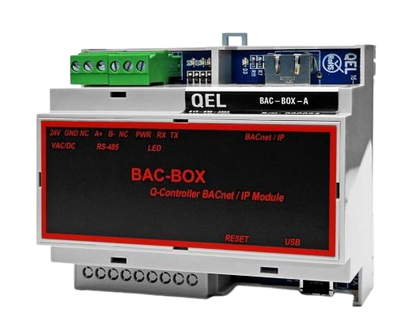

ACI Channel Analog Modules

CALL (610-280-9100) ABOUT PURCHASING THIS ITEM:

4, 8, BACNET, Din Rain Mounting, Manual Input Channel Analog Input, Output Module, Q-Controller

DATASHEET - Q Controller

INSTRUCTIONS - Q Controller

Quick Specs:

• Supply Voltage:
  24 VAC Nominal, 15 to 24 VAC 50/60 Hz | 24 VDC Nominal, 18 to 30 VDC
• Supply Current:
  Q-Controller: 0.75A maximum (fuse protected) | Horn & Strobe: 0.75A maximum (fuse protected)
• Operating Environment:
  Indoor use only
