Macurco

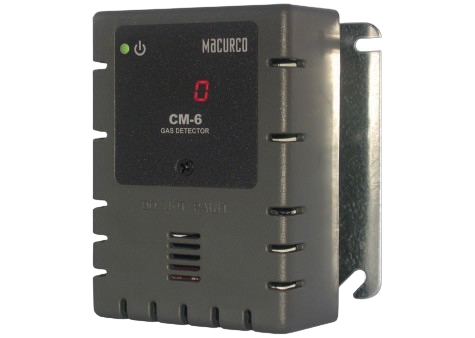

Macurco 6-Series Detectors
Macurco 6-Series Detectors
SKU:
CALL (610-280-9100) ABOUT PURCHASING THIS ITEM:
The Macurco 6-Series are low voltage, dual relay gas detector, controller and
transducers. The 6-Series have selectable 4-20mA output, buzzer and digital display
options. It is an electronic detection system used to measure the concentration of
various gases and provide feedback and automatic control to help reduce gas
concentrations in parking garages, warehouses, boiler rooms, vehicle maintenance
facilities, battery rooms, kitchens or other commercial applications.
Gases:
- CM-6 Carbon Monoxide (CO)
- GD-6 Combustibles (LEL)
- TX-6-ND Nitrogen Dioxide (NO2)
- TX-6-AM Ammonia (NH3
- TX-6-HS Hydrogen Sulfide (H2S)
- RD-6 Refrigerants (REF)
- CD-6 Carbon Dioxide (CO2)
- OX-6 Oxygen (O2)
Quick Specs:
- Power: 3 W (max) from 12 to 24 VAC or 12 to 32 VDC
- Current @ 24 VDC: 75 mA in alarm, 50 mA fan relay on and 23 mA stand by
- Shipping Weight: 1 pound (0.45 kg)
- Size: 4 1/2 x 4 x 2 1/8 in. (11.4 X 10.2 X 5.4 cm)
- Color: Dark Gray (Standard) or White Housing
