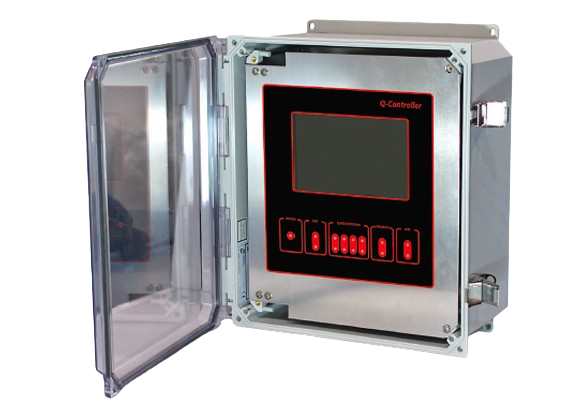

Q-CONTROLLER (Industrial Wall Mount)

CALL (610-280-9100) ABOUT PURCHASING THIS ITEM:

Controller, 4 RS-485 ports, 4 SPDT Relays, 7" LCD touchscreen

DATASHEET - Q Controller

INSTRUCTIONS - Q Controller

Quick Specs:

• Supply Voltage:
  24 VAC Nominal, 15 to 24 VAC 50/60 Hz | 24 VDC Nominal, 18 to 30 VDC
• Supply Current:
  Q-Controller: 0.75A maximum (fuse protected) | Horn & Strobe: 0.75A maximum (fuse protected)
• Operating Temperature Range:
  32ºF to 120ºF (-0ºC to 49ºC)
• Display:
  7” LCD touchscreen with 800 X 480 resolution15 Status LED’s: Power, USB TX/RX status4 RS-485 port TX/RX status for sensor network1 RS-485 port TX/RX status for Modbus1 RS-485 port TX/RX status for BACnet Module BAC-box
