SNODE Senor Elements

CALL (610-280-9100) ABOUT PURCHASING THIS ITEM:

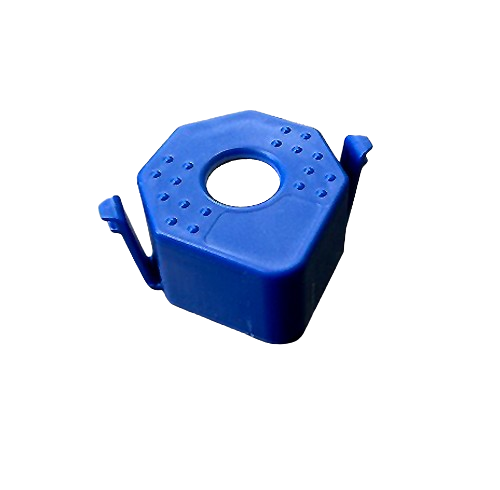

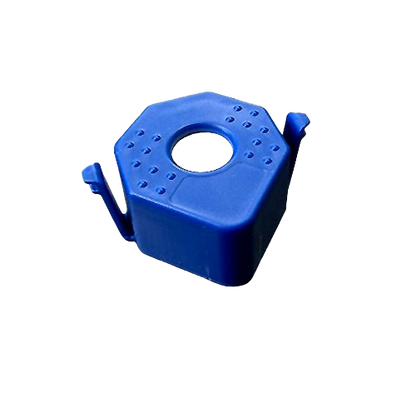

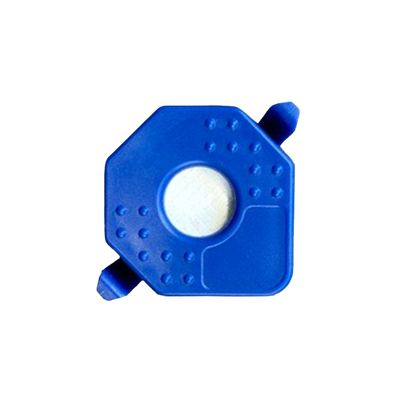

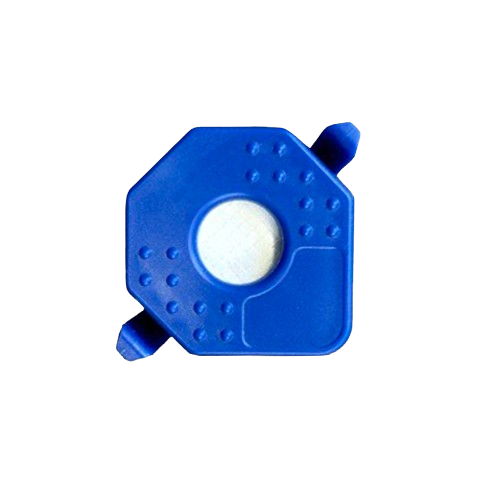

Pergamon cartridges / senor elements

Supported Gases:

Supported Gases

• Combustible
  - Butane C4H10 Catalytic bead 0 –60% LEL 3 years 20 ft. (6 m)
  - Hydrogen H2 Catalytic bead 0 –60% LEL 3 years 20 ft. (6 m)
  - Methane CH4 Catalytic bead 0 –60% LEL 3 years 20 ft. (6 m)
  - Propane C3H8 Catalytic bead 0 –60% LEL 3 years 20 ft. (6 m)


• Oxygen
  - Oxygen O2 Electrochemical 0 –25% 5 years 20 ft. (6 m)


• Refrigerant
  - R-407C, R-134A, R-410A, R-404A, R-22 Infrared 0 –1,000 ppm 10 years 20 ft. (6 m)


• Toxic
  - Ammonia NH 3 Electrochemical 0 –100 ppm 2 years 20 ft. (6 m)
  - Carbon dioxide CO2 Infrared 0 –5,000 ppm 10 years 50 ft. (15 m)
  - Carbon monoxide CO Electrochemical 0 –200 ppm 5 years 50 ft. (15 m)
  - H2S Electrochemical 0 –20 ppm 3 years 20 ft. (6 m)
  - Nitrogen dioxide NO 2 Electrochemical 0 –10 ppm 2 years 50 ft. (15 m)
  - Formaldehyde CH 2O Electrochemical 0 –10 ppm 2 years 20 ft. (6 m)
  - Chlorine CL 2 Electrochemical 0 –10 ppm 2 years 20 ft. (6 m)
  - Nitric oxide NO Electrochemical 0–250 ppm 2 years 20 ft. (6 m)
  - Sulfur dioxide SO 2 Electrochemical 0–2,000 ppm 2 years 20 ft. (6 m)
